Digital Circuit Design. Design combinational and sequential digital circuits.
advertisement
| Name | DiCiDe: Digital Circuit Design |
|---|---|
| Version | 1.2 |
| Update | Aug 12, 2015 |
| Size | 422 KB |
| Category | Education |
| Installs | 10K+ |
| Developer | Adrián Vaca Humanes |
| Android OS | Android 2.2++ |
| Google Play ID | com.avh.digitalcircuitdesign |
DiCiDe: Digital Circuit Design · Screenshots
DiCiDe: Digital Circuit Design · Description
Solve combinational systems up to 8 variables, 8 outputs by Quine-McCluskey

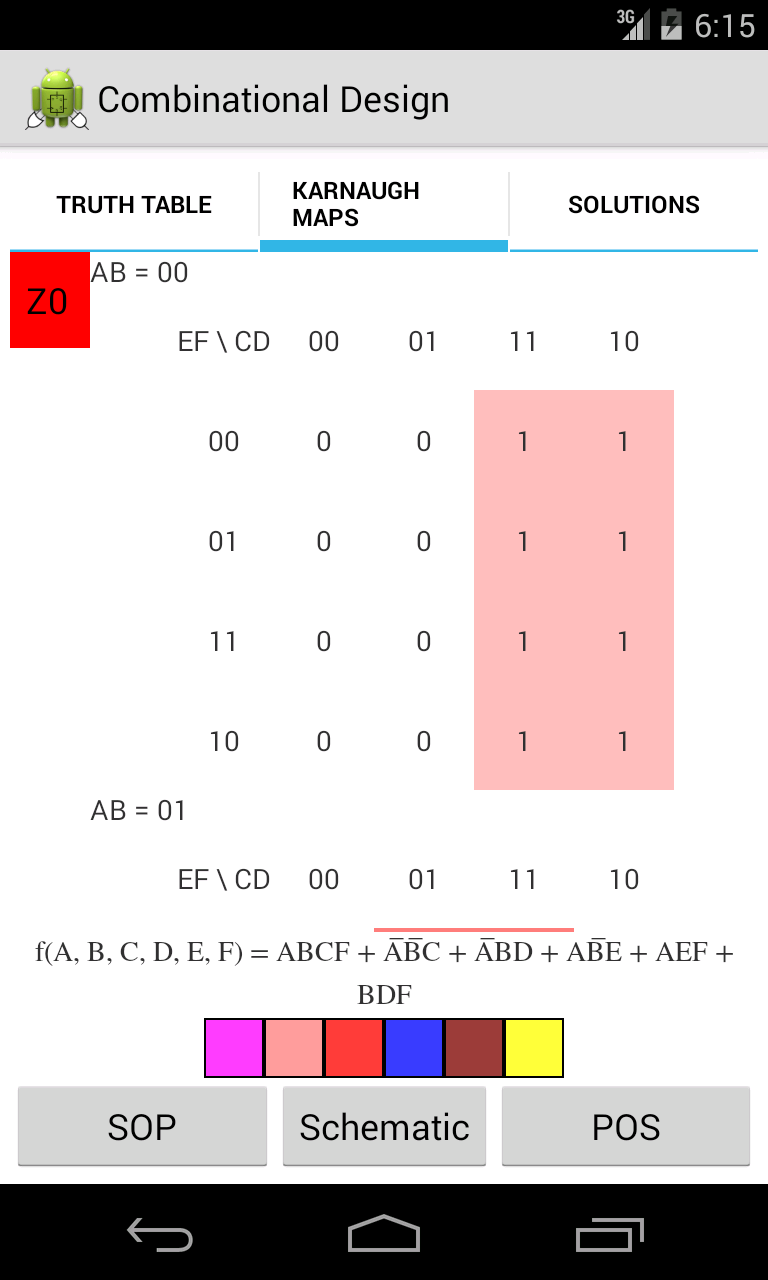

- Display loops on Karnaugh maps
- Display solutions in boolean algebraic form

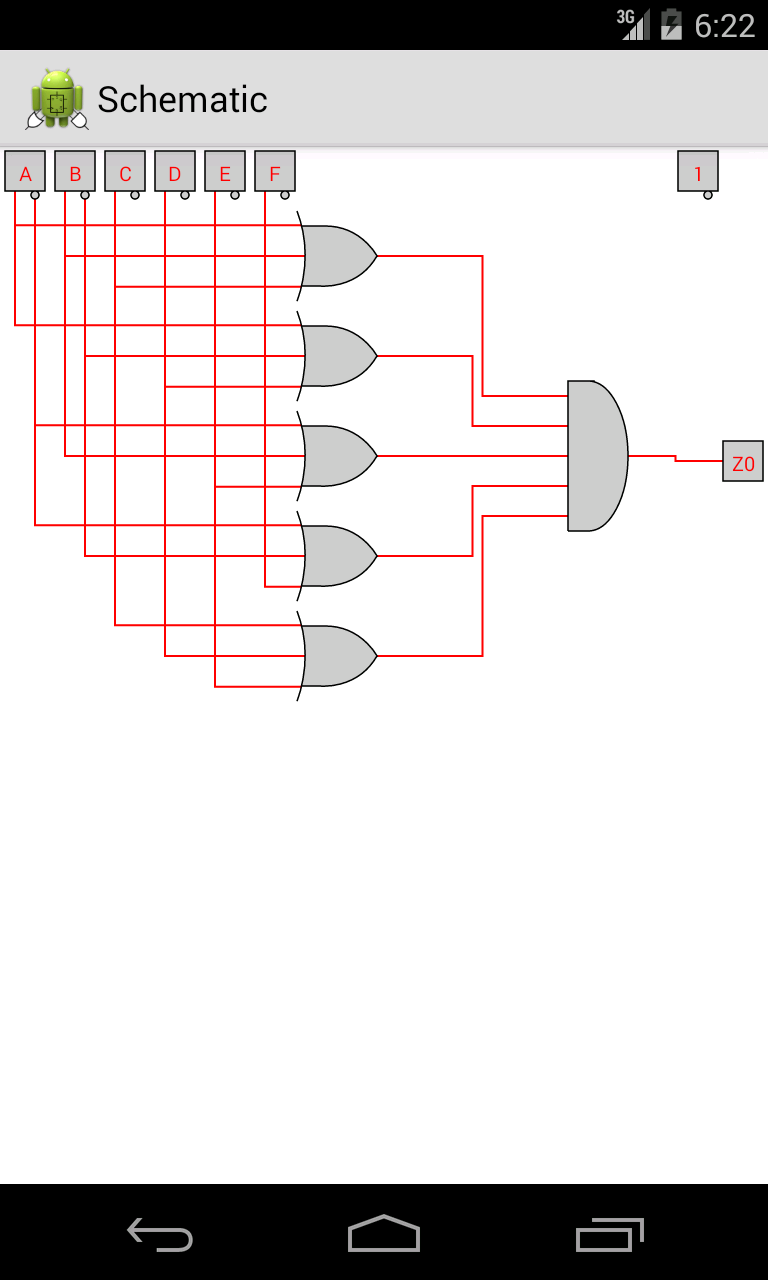

- Plot schematic
Tip: You can fill rows or columns of the truth table at once by first tapping on their header.
Design sequential systems (synchronous deterministic finite state machines) up to 5 inputs, 5 outputs
- Moore and Mealy automata

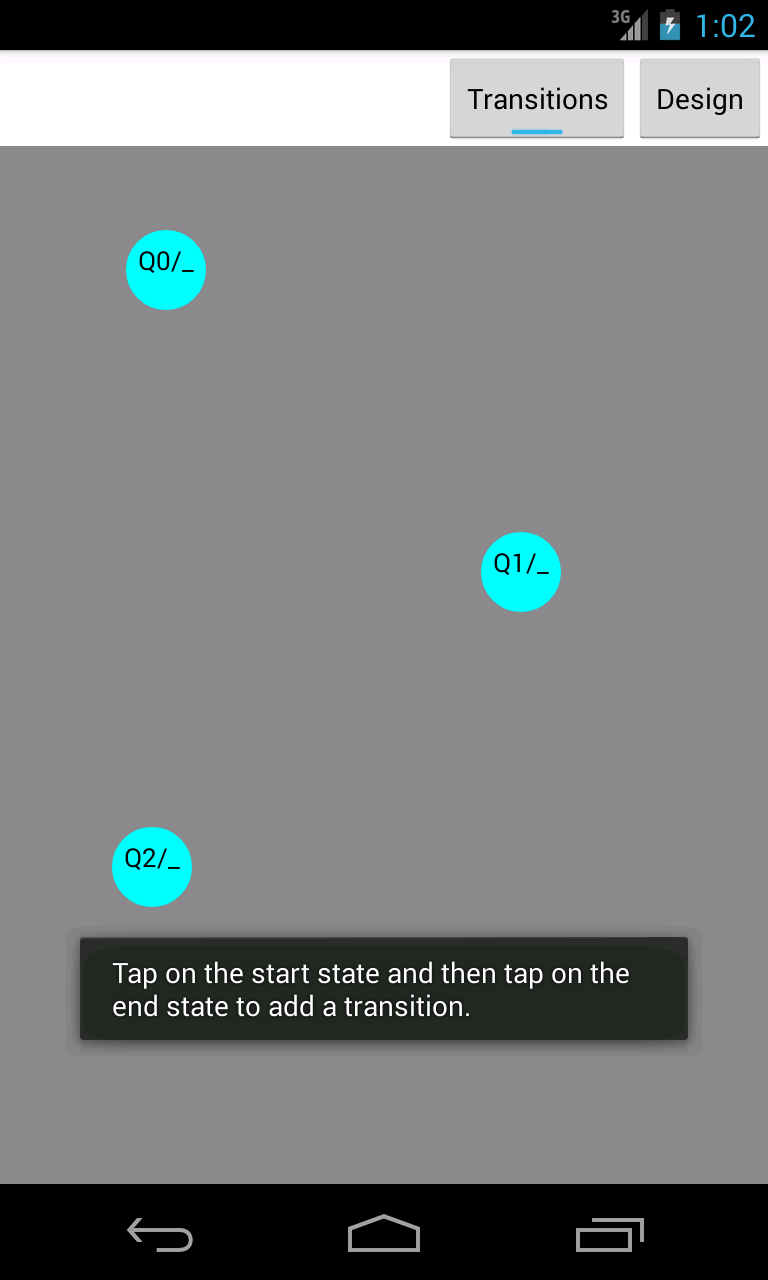

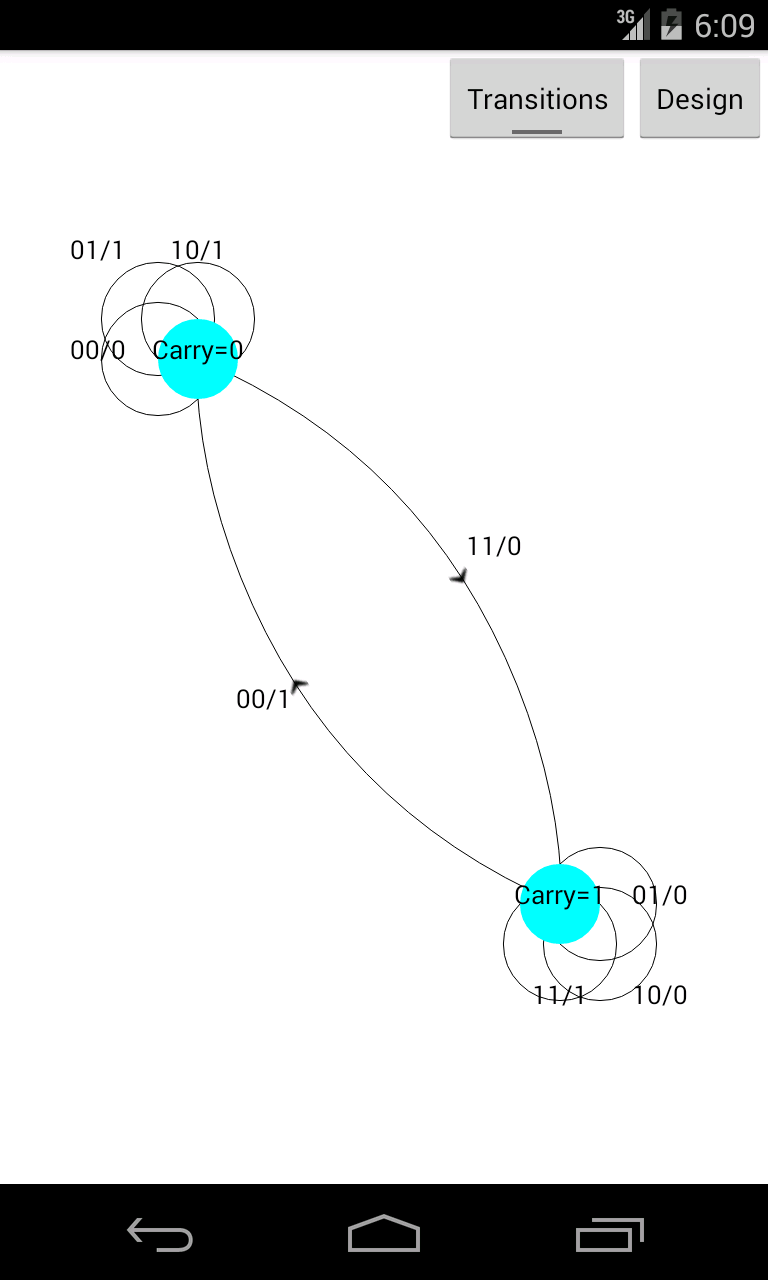

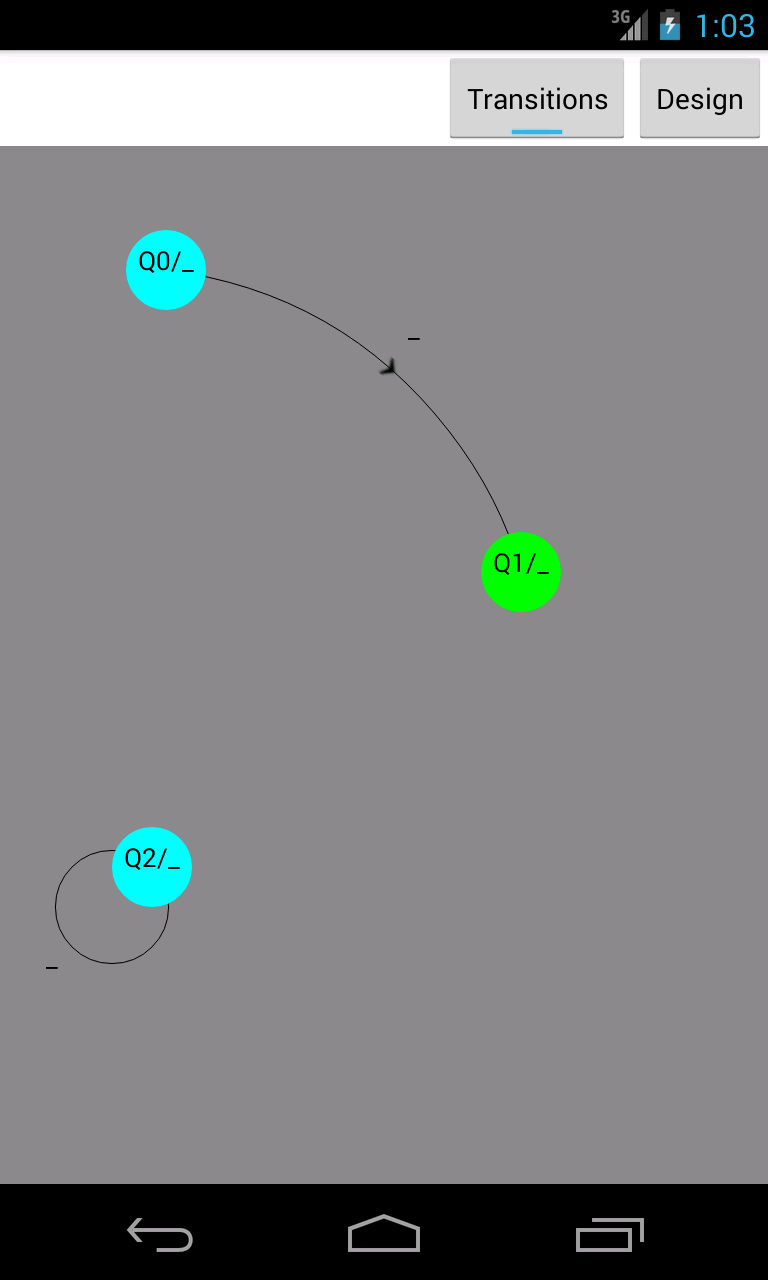

- State diagram capture (long tap to edit states and transitions)

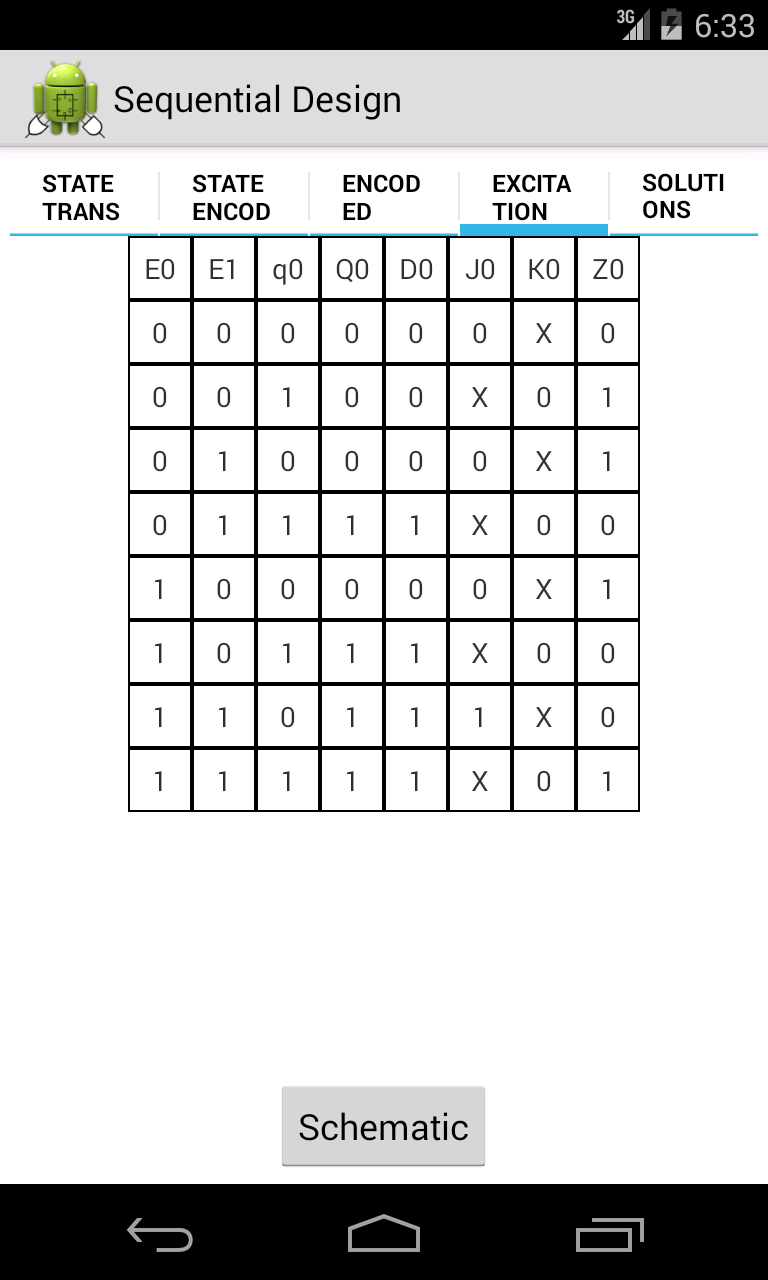

- State codification and flip-flop excitation tables
- Display solutions in boolean algebraic form

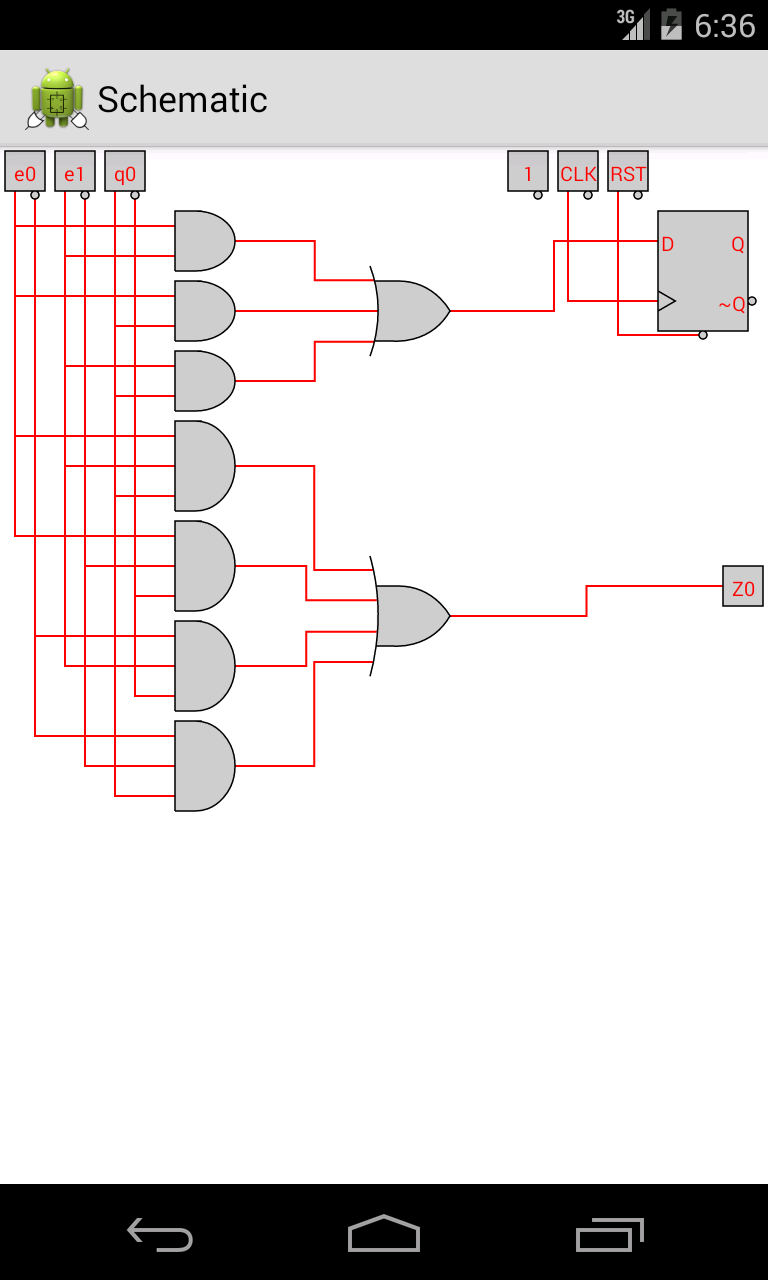

- Plot schematic
Tip: You can change the state codification by tapping on the cells of the qi column.
Please, do leave your feedback and suggestions either by email or in the comments below.
- Display loops on Karnaugh maps
- Display solutions in boolean algebraic form
- Plot schematic
Tip: You can fill rows or columns of the truth table at once by first tapping on their header.
Design sequential systems (synchronous deterministic finite state machines) up to 5 inputs, 5 outputs
- Moore and Mealy automata
- State diagram capture (long tap to edit states and transitions)
- State codification and flip-flop excitation tables
- Display solutions in boolean algebraic form
- Plot schematic
Tip: You can change the state codification by tapping on the cells of the qi column.
Please, do leave your feedback and suggestions either by email or in the comments below.
